38 FXO

To New Heights

Spend more time together, reaching for new heights and new territories on the 38 FXO. This outboard-powered yacht provides ultimate versatility with elevated 360° open-air views when captained from the bridge or a climate-controlled environment surrounded by panoramic windows when captained in the upper salon. Staying overnight is comfortable with luxurious accents. So no matter how long of a trip or the weather, the Regal 38 FXO has you covered.

Quote
Build

Color Options

38 FXO

Hull Side

Bootstripe

Hull Bottom

Tower

  • None
Build

Highlights

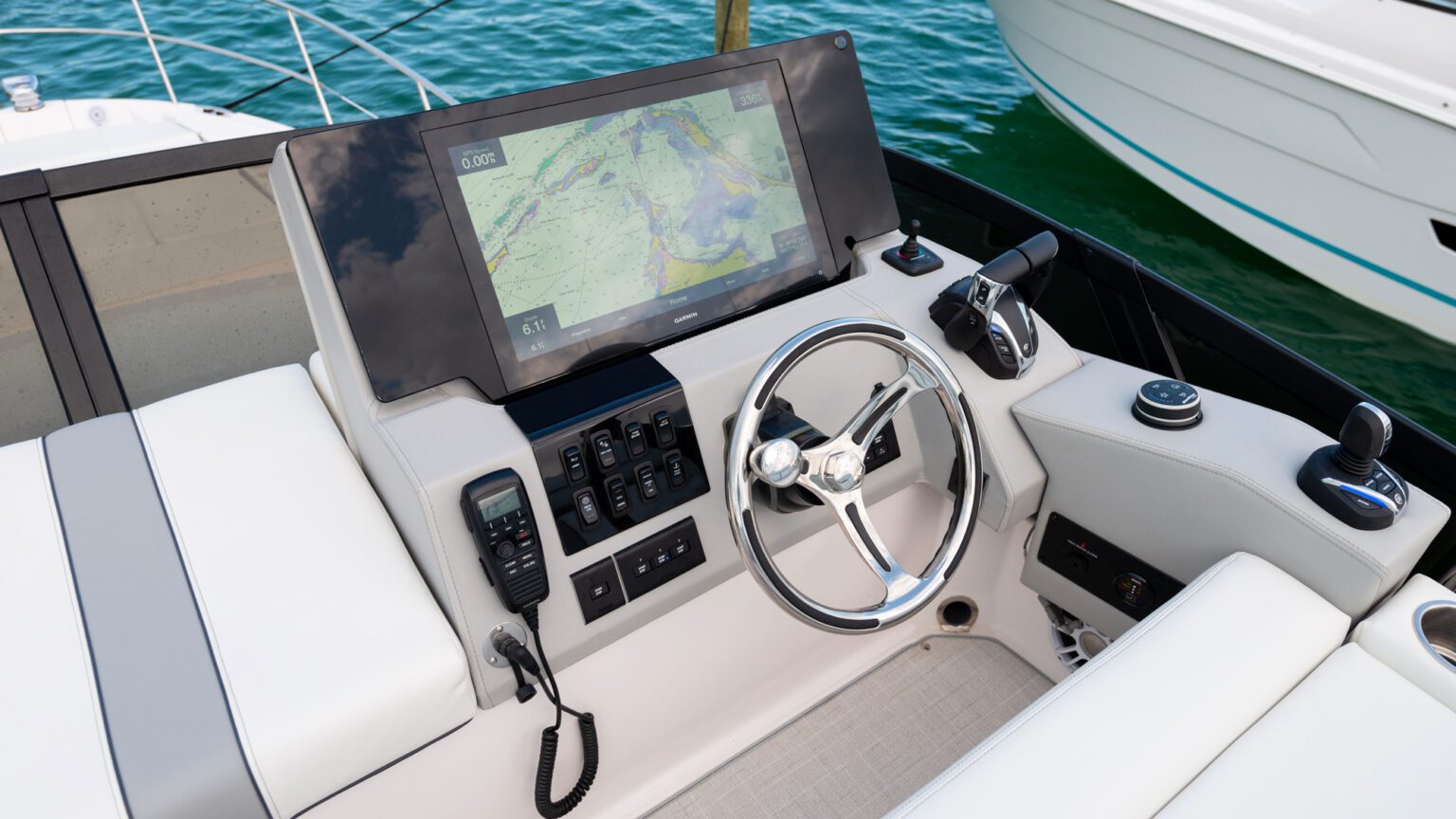

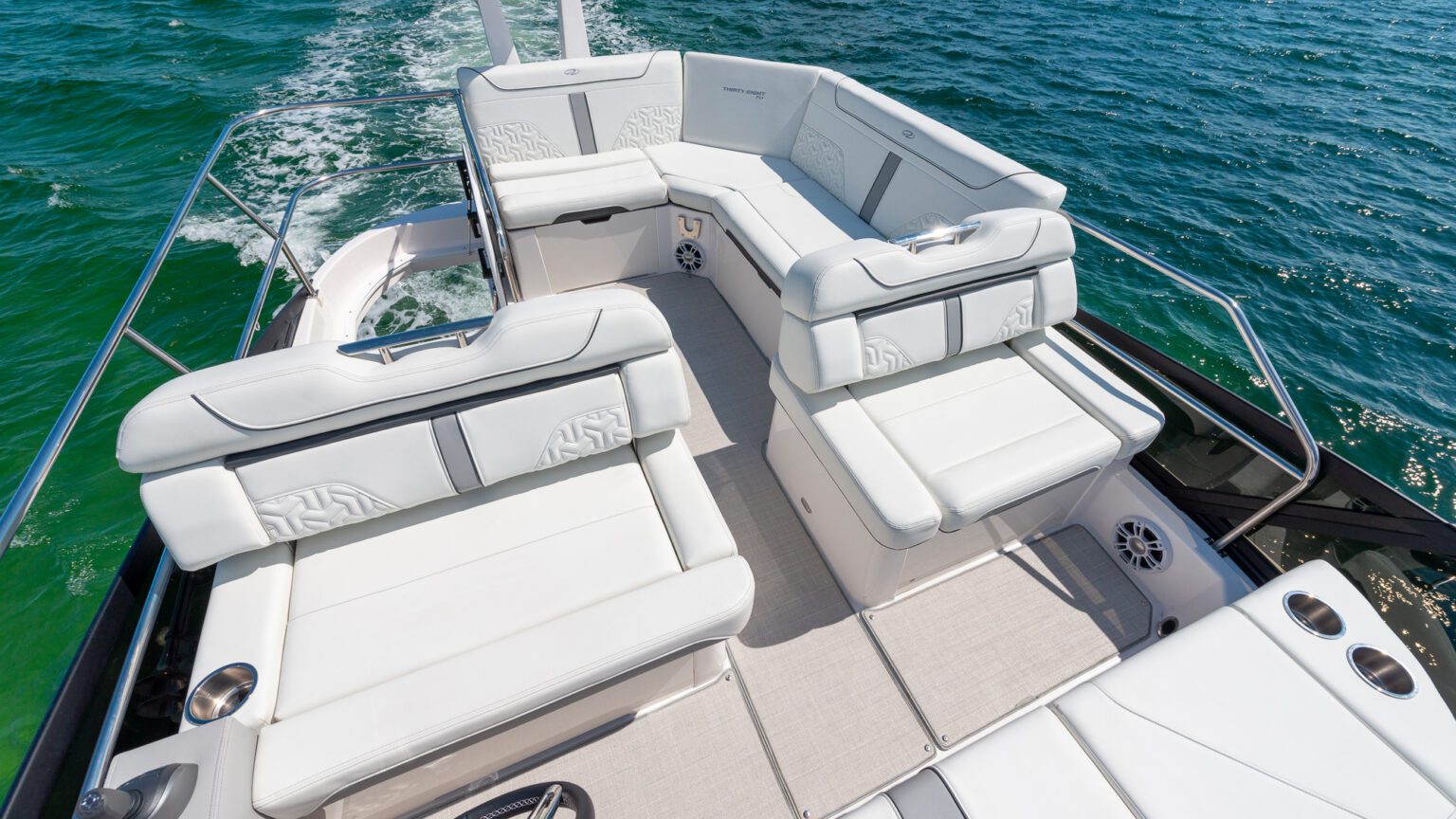

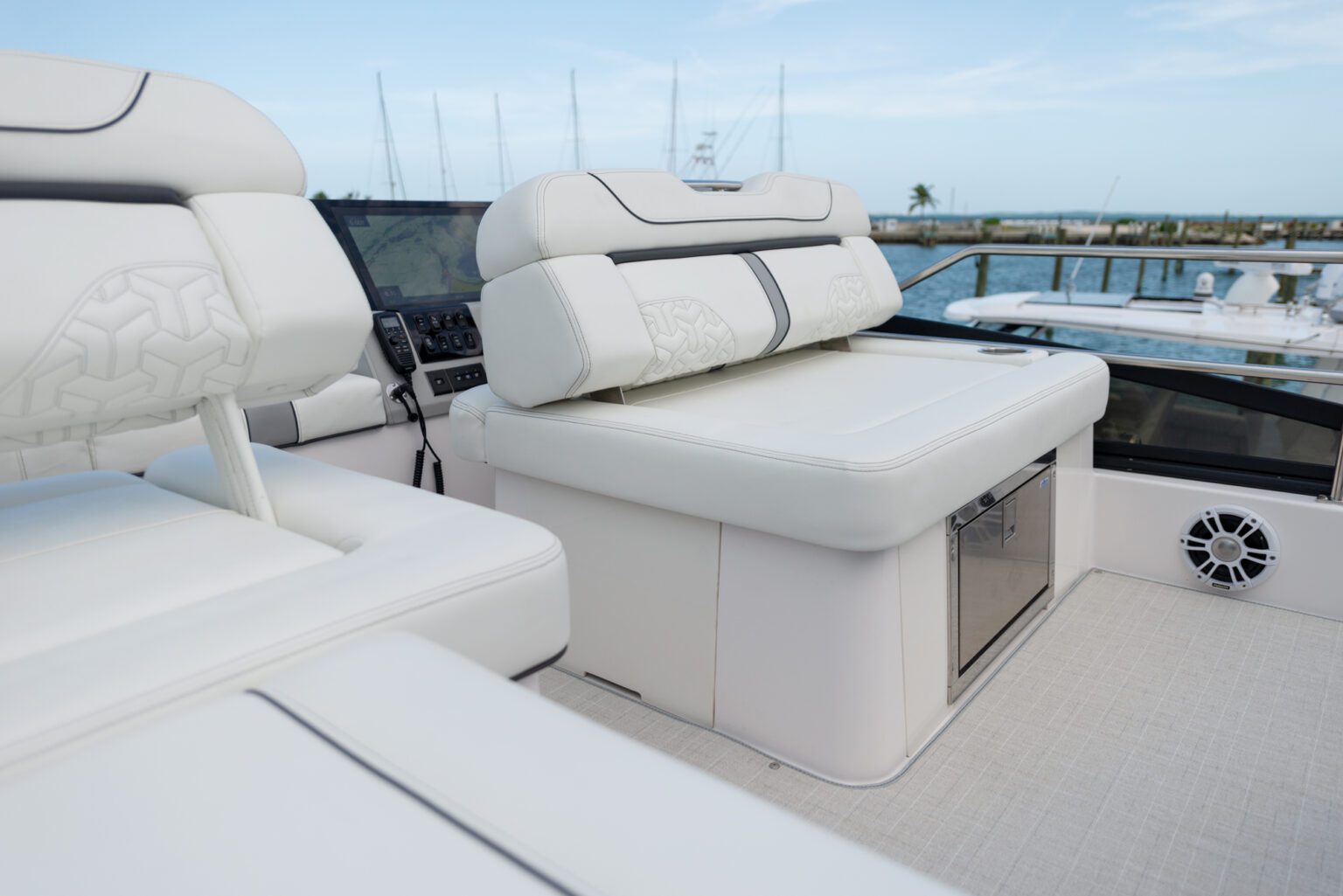

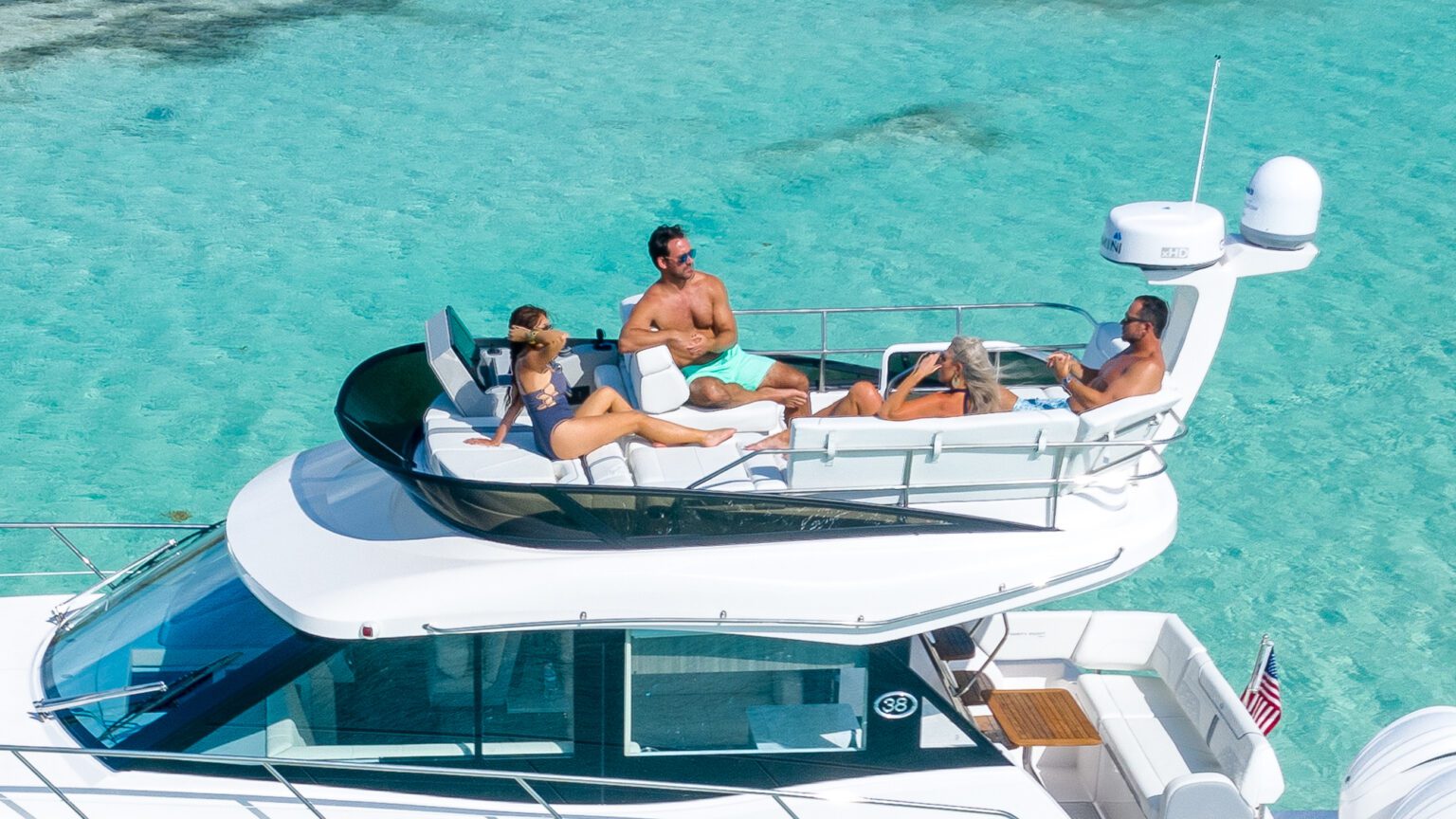

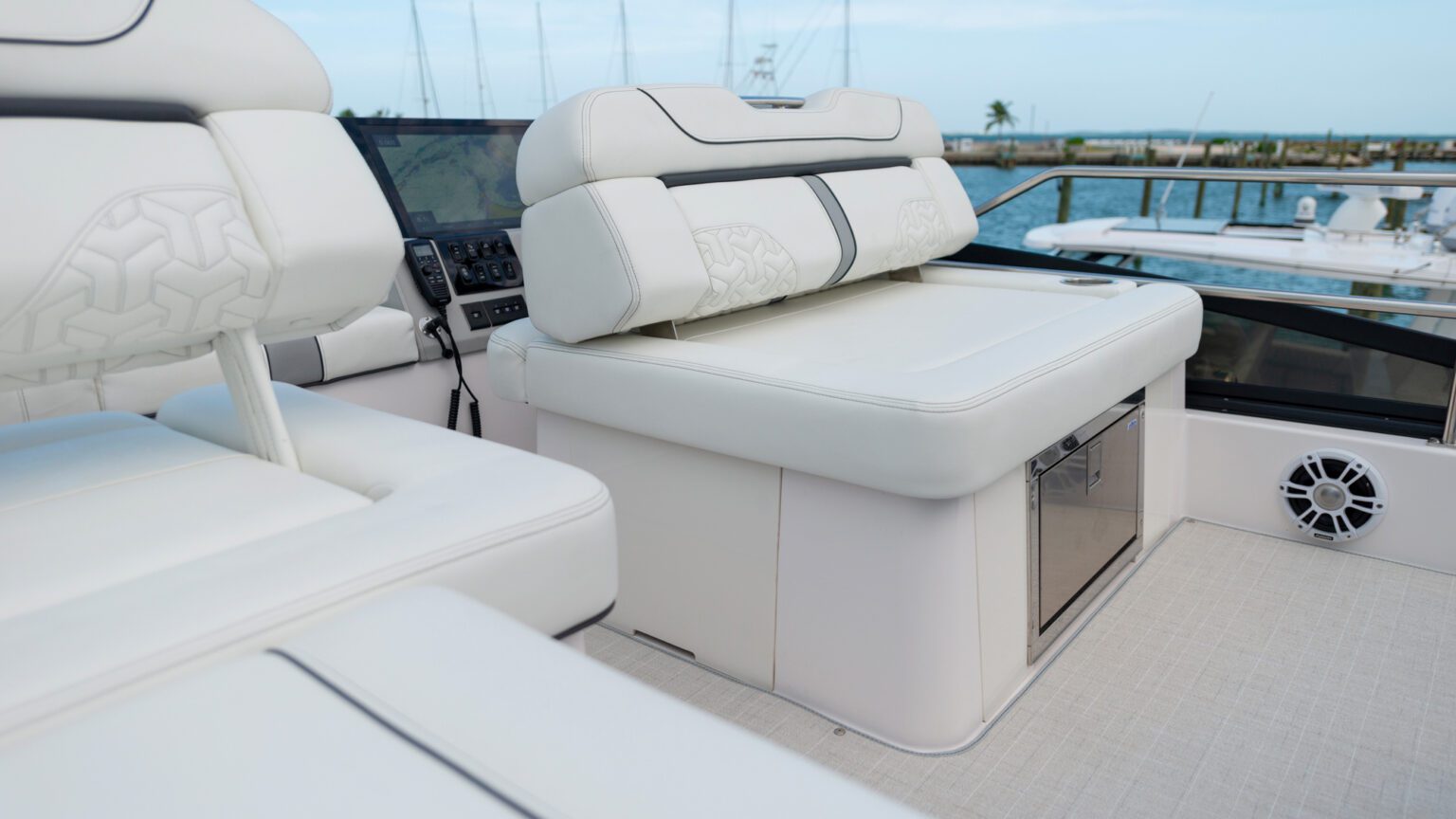

Flybridge
Flybridge

The flybridge's open layout creates a prime location for both entertaining and navigating.

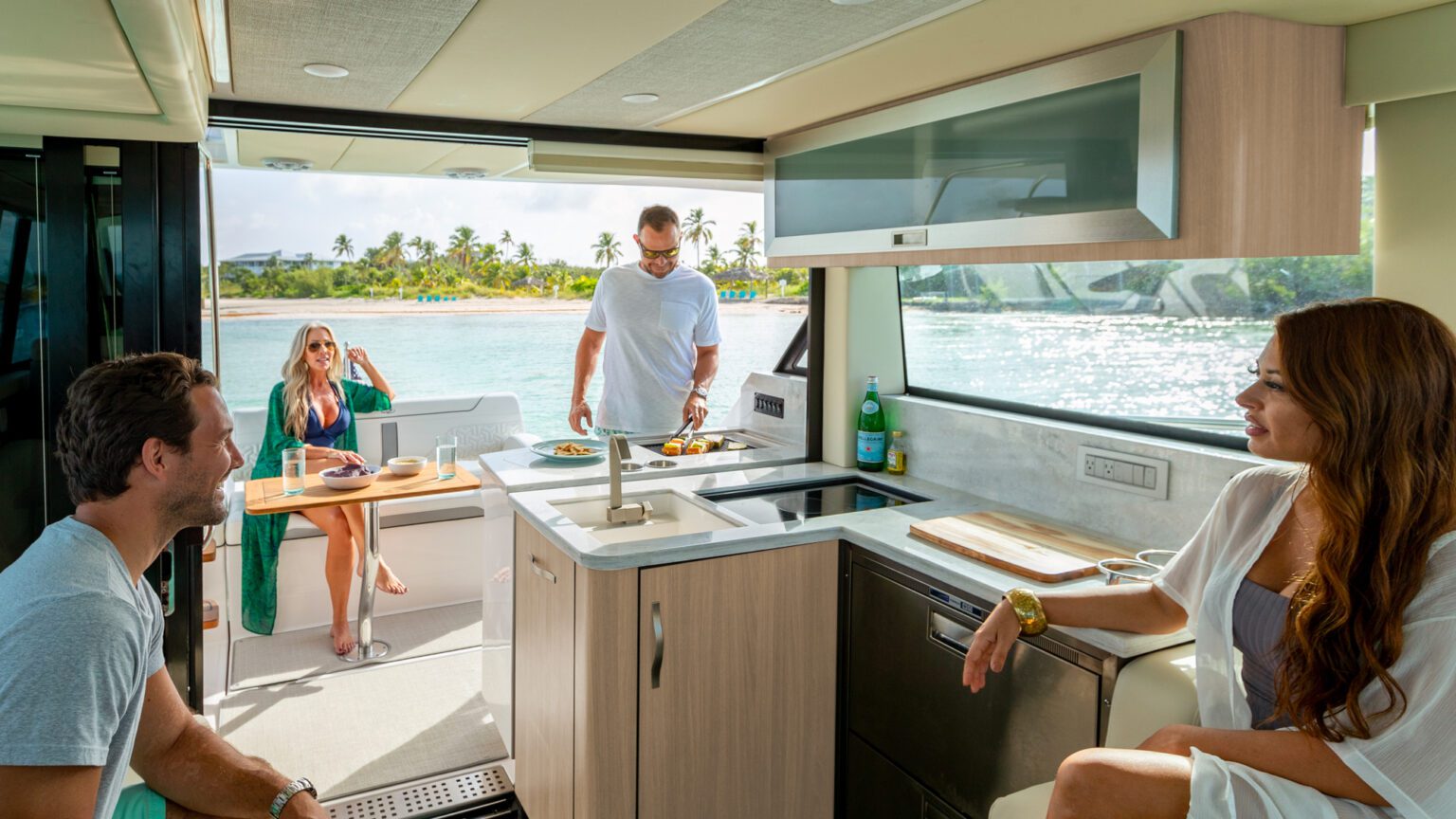

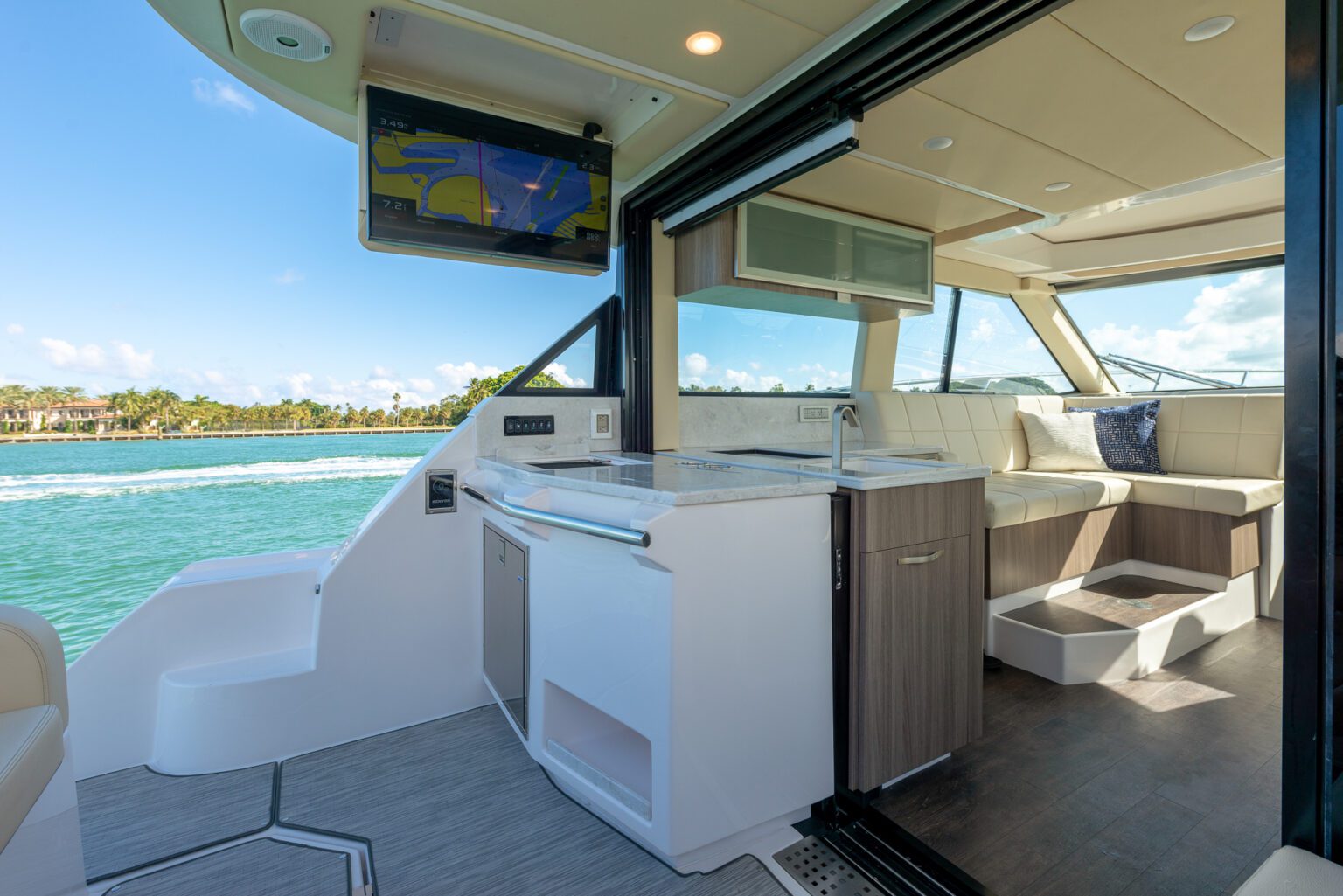

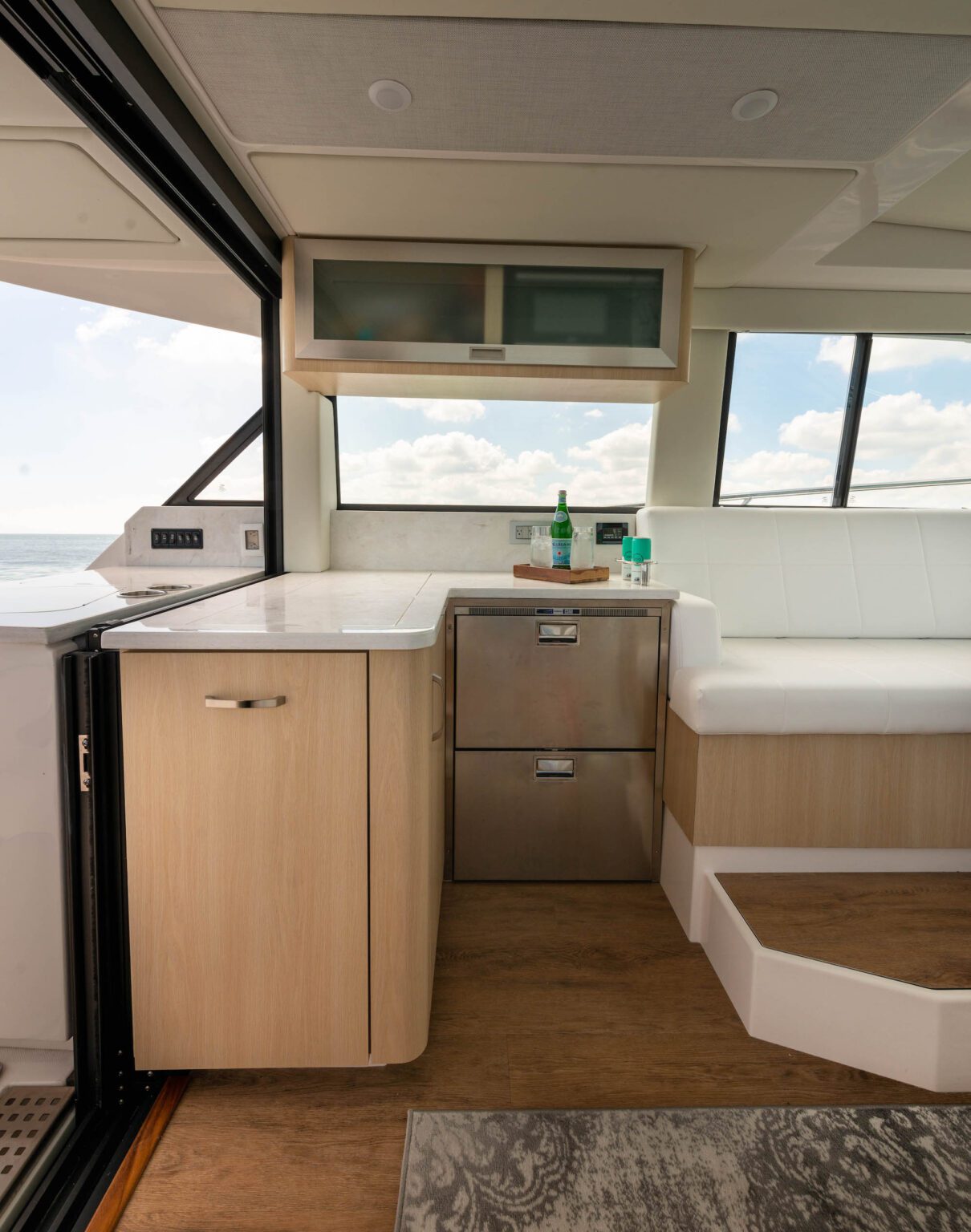

CONVERTIBLE ENTERTAINMENT AREA
CONVERTIBLE ENTERTAINMENT AREA

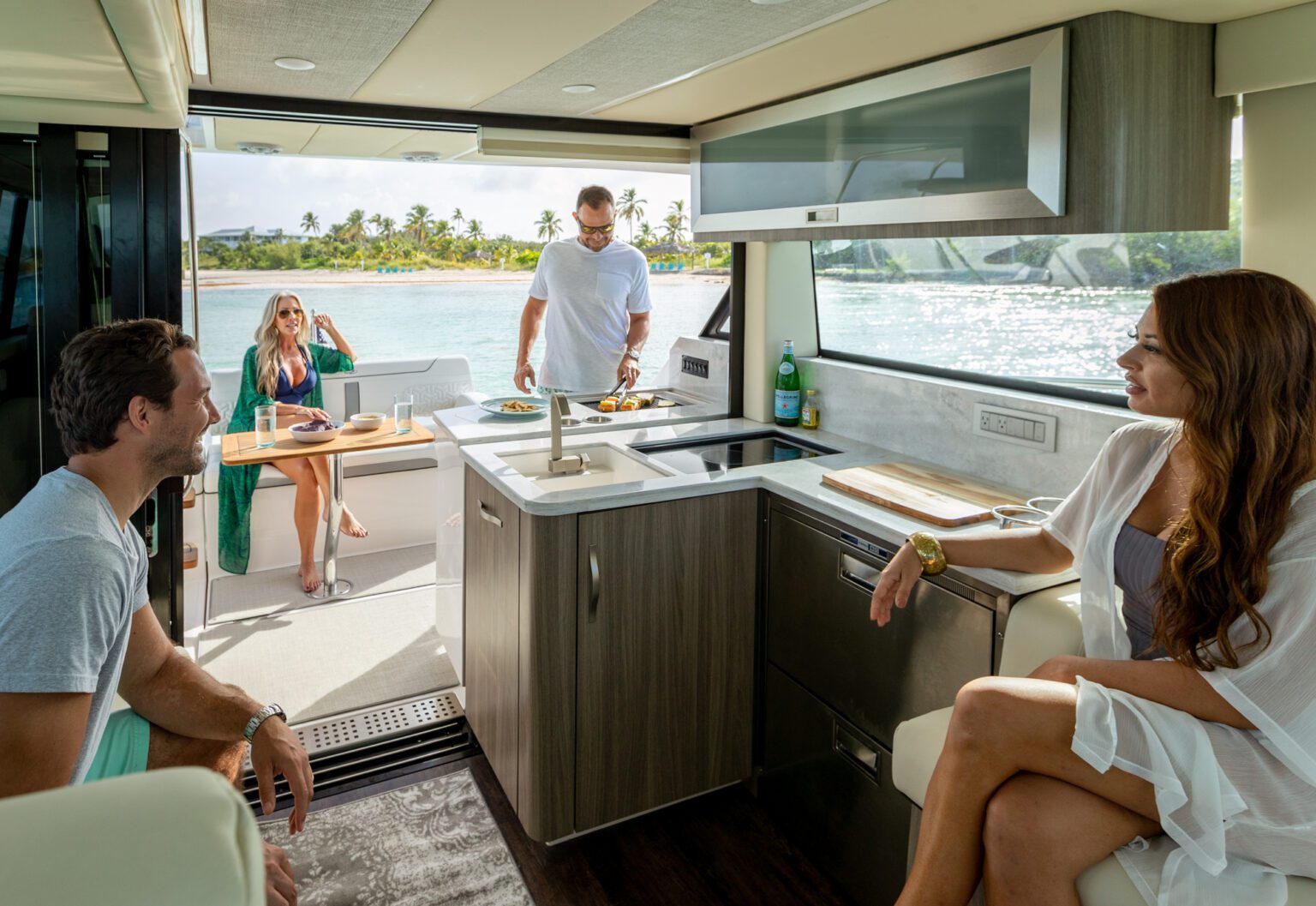

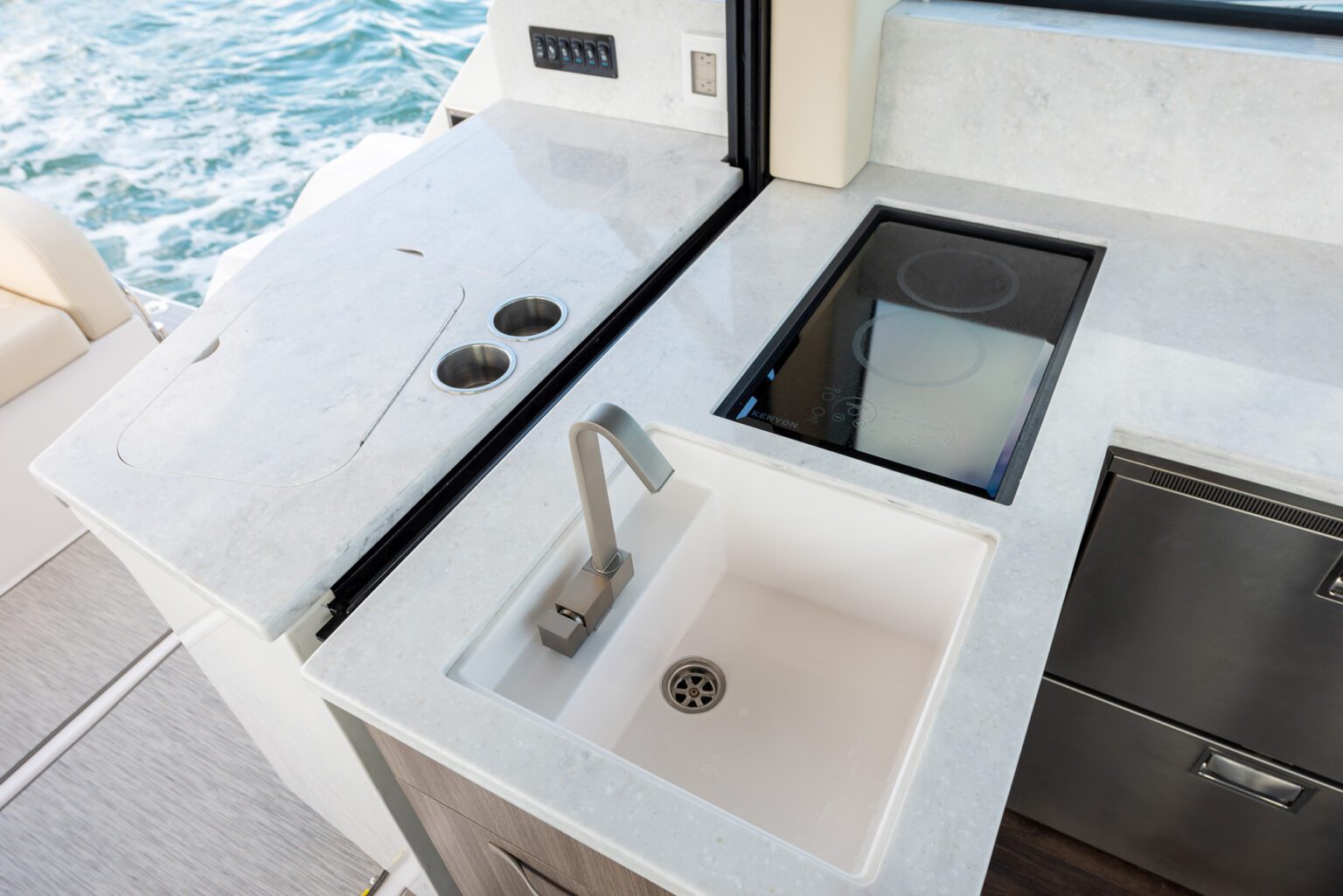

The galley combines with the outdoor refreshment center to serve as a versatile meal prep station.

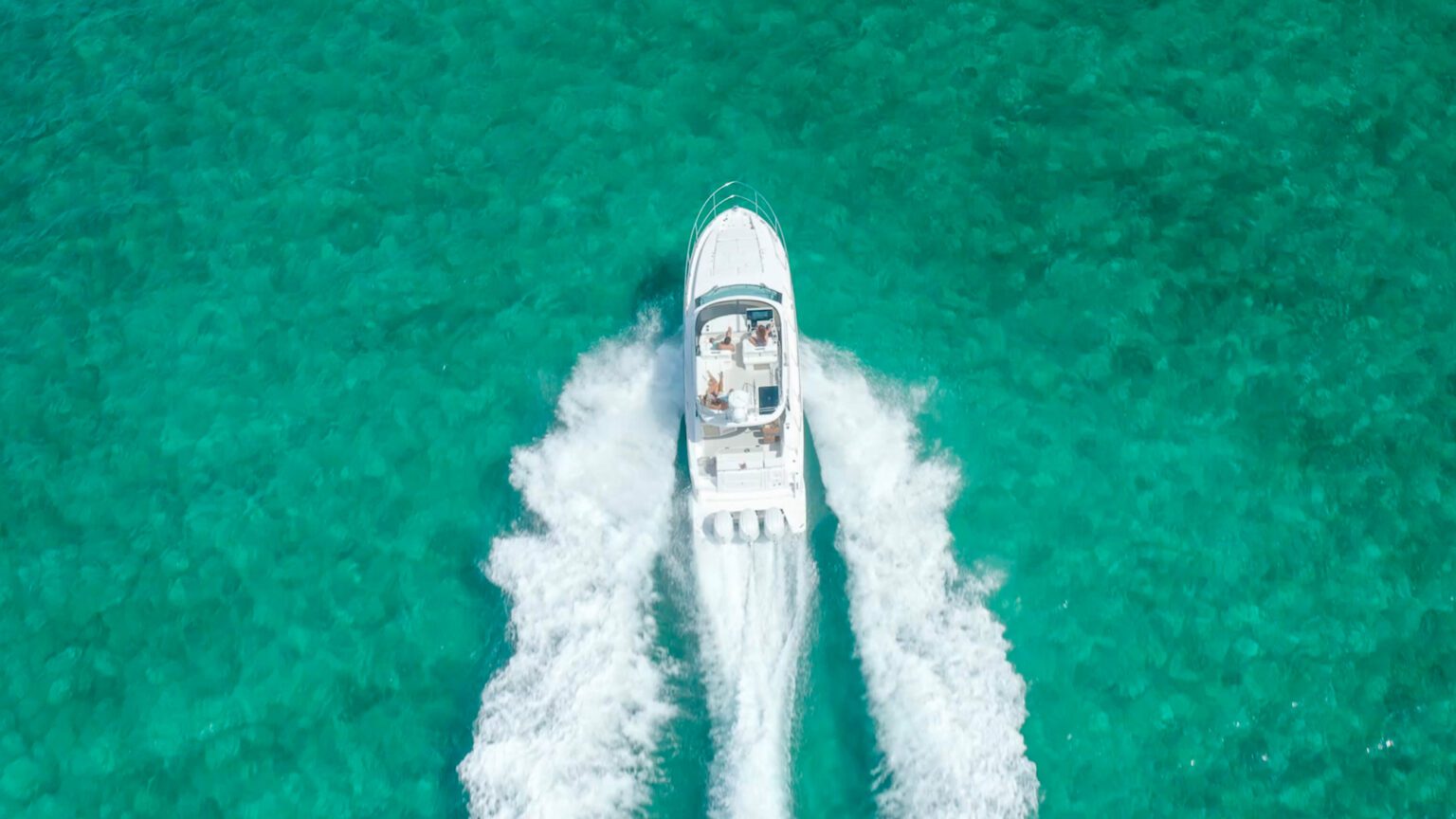

OPTIMIZED FOR OUTBOARD POWER
OPTIMIZED FOR OUTBOARD POWER

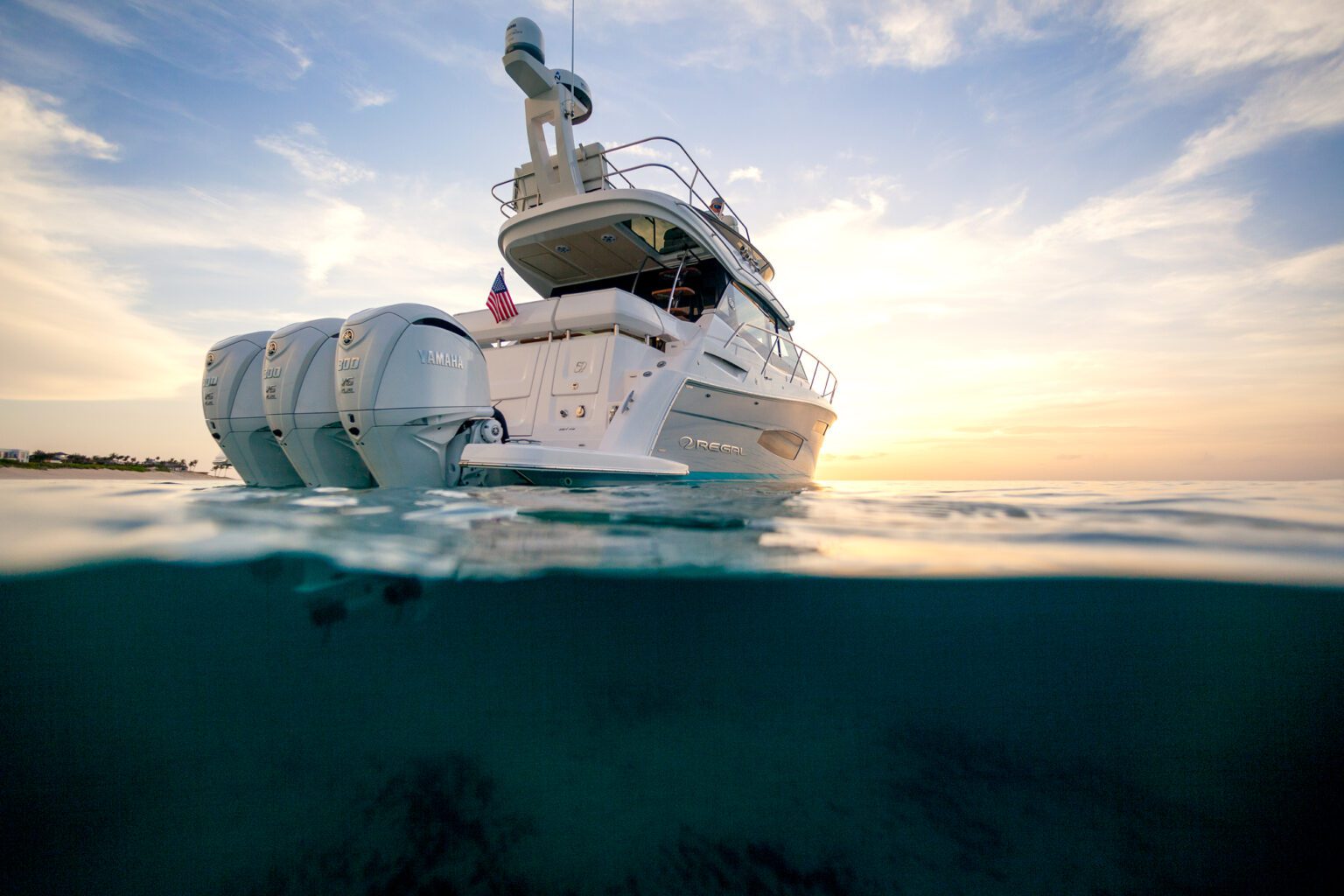

The 38 FXO has been optimized and designed for outboard power from the start which equates to incredible performance and handling.

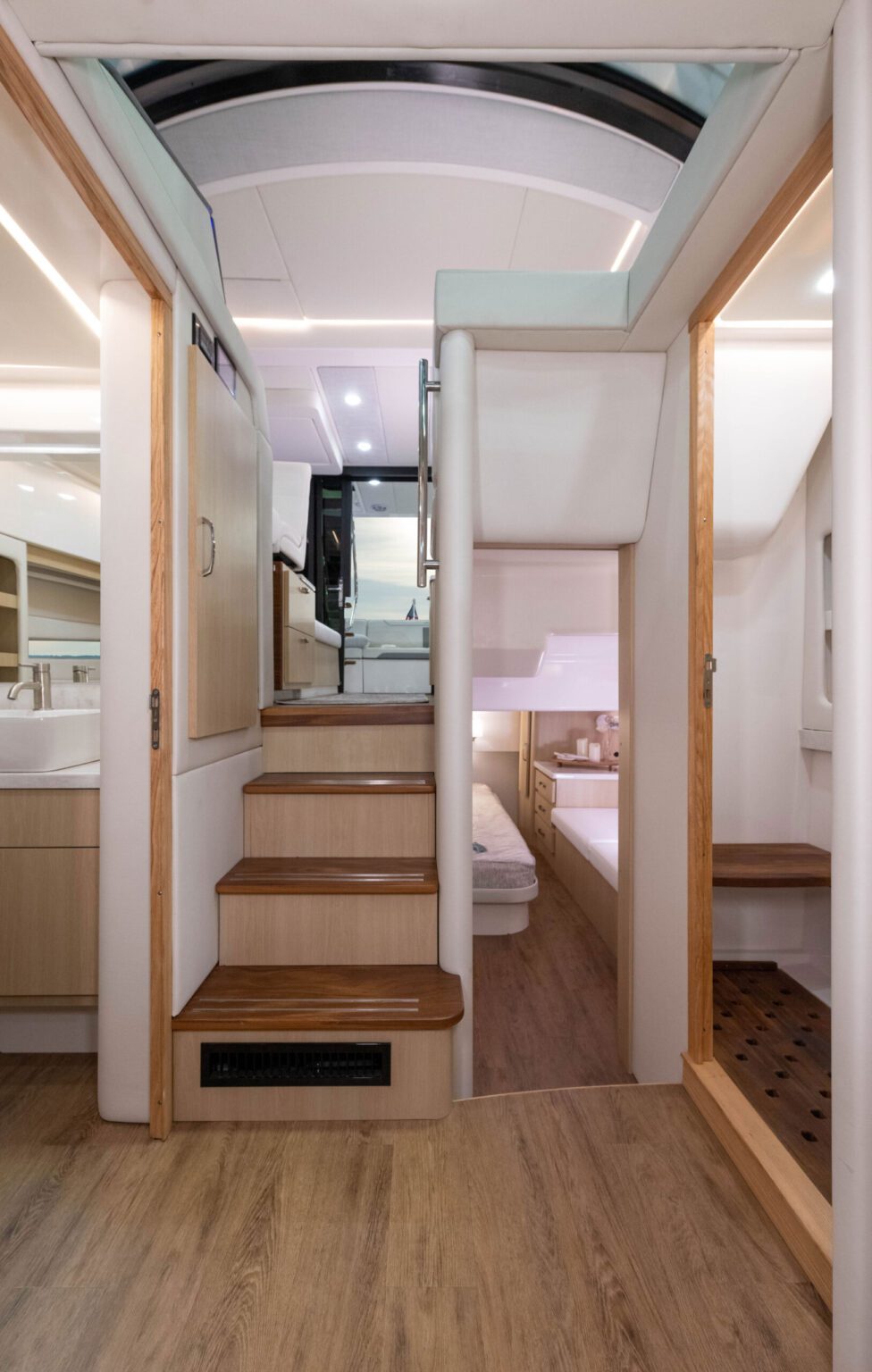

SEAMLESS SINGLE LEVEL COCKPIT SOLE
SEAMLESS SINGLE LEVEL COCKPIT SOLE

Lower the large window with just the push of a button and slide open the enclosure doors to seamlessly blend the cockpit and salon.

Best-In-Class Forward Stateroom | 38 Grande Coupe & 38 XO
Best-In-Class Forward Stateroom

Featuring a California Queen bed, easy access on both sides, and an unheard amount of storage beneath, the forward stateroom not only raises the bar but is in a class of its own.

Spacious Aft Stateroom
Spacious Aft Stateroom

The aft stateroom features a full-size king bed with plenty of walk-around space that can easily be converted into two twin beds.

specs

38 FXO
38 FXO
38 FXO
39' 3" 11.96 M

Length

11' 11" 3.6 M

Beam

360 1363

Gallon Tank

Liter Tank

YACHT CERTIFIED -

Max Capacity

standard
metric
Length Overall 39' 3" 11.96 M
Beam 11' 11" 3.6 M
Fuel Capacity 360 Gal 1363 L
Dry Weight 21,600 Lbs 9798 Kg
Deadrise 18⁰ 18⁰
Draft - Drive Up 24" 0.6 M
Draft - Drive Down 39" 1 M
Fresh Water 55 Gal 208 L
Waste Tank 29 Gal 110 L
Generator Diesel Fuel Capacity 28 Gal 106 L
Max Capacity YACHT CERTIFIED -
Height - Drive down to light 19' 9" 6 M
Height - Drive down to SAT Dome 19' 1" 5.8 M
Height - Drive down to Radar 17' 11" 5.5 M
Height - Drive down to top of Flybridge (excluding Radar tower) 15' 8" 4.8 M
Bridge Clearance - Water To Hardtop Light 16' 6" 5.02 M
Bridge Clearance - Water To Hardtop SAT Dome 15' 11" 4.85 M
Bridge Clearance - Water To Hardtop Radar 14' 9" 4.49 M

Options

Engine & Technical Options

Engine Options

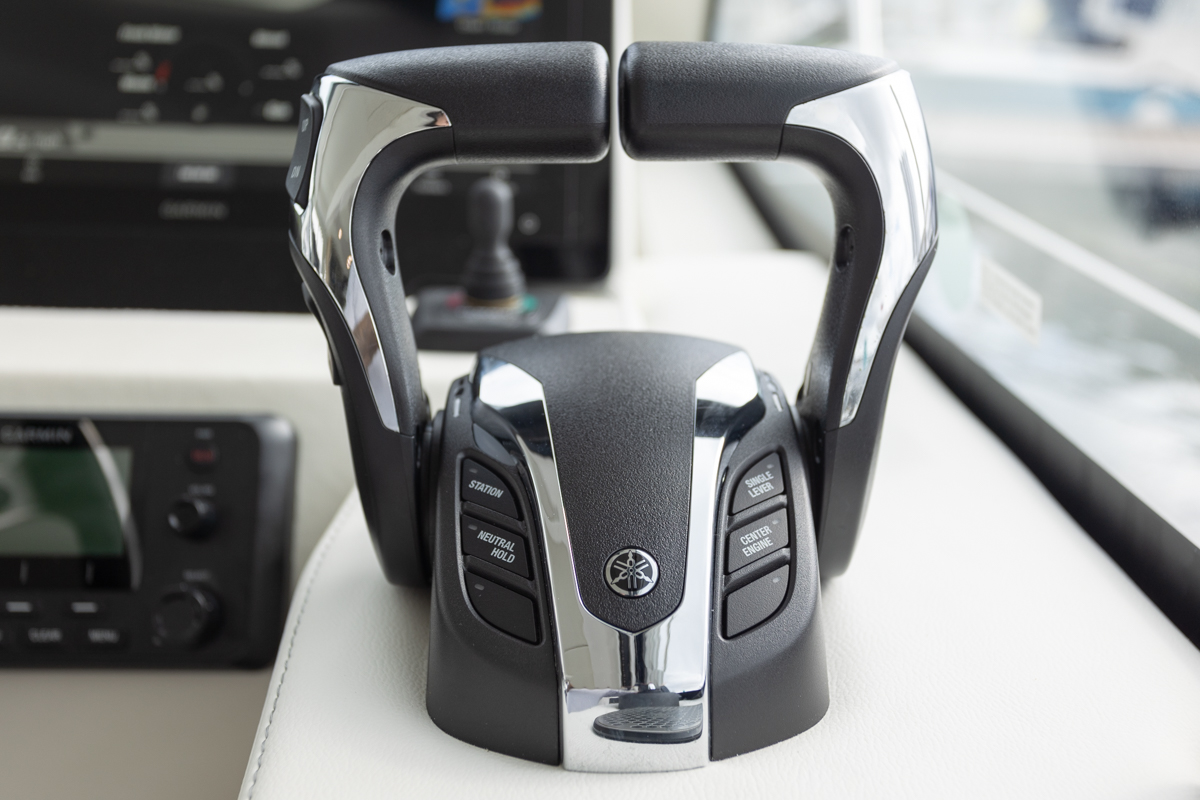

  • Triple Yamaha 300HP with Integrated Steering - White
    900 Horsepower
    Triple Yamaha 300HP with Integrated Steering - White

Generator Options

  • Generator: Diesel 110V
    Generator: Diesel 110V

    Never a need to worry about a lack of power with the 110 volt generator.

  • Generator: Gas 110V
    Generator: Gas 110V

    Never a need to worry about a lack of power with the 110 volt generator.

Technical Options

  • Bow Thruster
    Bow Thruster

    This transversal propulsion device tremendously increases maneuverability; docking becomes a breeze.

  • Central Vacuum System
    Central Vacuum System

    Clean your boat with ease.

  • Cruise Package
    Cruise Package

    Comes complete with fire extinguishers, life vests, dock lines, fenders, Hoses (2), boat brush and hook.

  • Grey Water System
    Grey Water System

    The Gray Water System drains all gray water into the holding tank, perfect for waterways that require gray water storage

  • Helm Master EX Full Maneuverability with Joystick
    Helm Master EX Full Maneuverability with Joystick

    Helm Master™ EX is a fully integrated boat control system that makes navigating and getting to your destination easier, and once you arrive, gives a whole new level of control to precisely maneuver your craft to exactly where and how you want it.

  • Seakeeper 3 Stabilization System
    Seakeeper 3 Stabilization System

    Thanks to Seakeeper's active control and its ability to optimize gyro torque, eliminate up to 95% of boat roll in all sea conditions and enjoy a smoother ride.

  • Toilet: Overboard Discharge
    Toilet: Overboard Discharge

    If you are headed a few miles off the coast, the overboard discharge allows you to empty the tank in minutes.

Interior Options

Bedding Options

  • King Comforter
    King Comforter

    Versatility is at your fingertips, thanks to the convertible bed in the aft stateroom that converts from a king bed to twins. Choose which comforter set comes with your Regal.

  • Twin Comforters
    Twin Comforters

    Versatility is at your fingertips, thanks to the convertible bed in the aft stateroom that converts from a king bed to twins. Choose which comforter set comes with your Regal.

Cabin Options

  • Aft Cabin Privacy Door
    Aft Cabin Privacy Door

    Add a little privacy to the aft cabin with the Aft Cabin Privacy Door option.

  • Salon Table
    Salon Table

    Take a seat in the cabin and relax with a meal on your salon table.

Cabinetry Options

  • Coastal
    Coastal

    An elegant mixture of light and medium tone woods provides warmth and a feeling that you are home.

Countertops Options

  • Countertops - Mosaic
    Countertops - Mosaic
  • Countertops - Strato Wind
    Countertops - Strato Wind

Flooring - Atrium Options

  • Atrium Floor - Toasted Oak
    Atrium Floor - Toasted Oak

Flooring - Salon & Galley Options

  • Salon Floor - Toasted Oak
    Salon Floor - Toasted Oak

Sofa fabric Options

  • Snowcap
    Snowcap

Exterior Options

Bottom Paint Color Options

  • Bottom Paint: Black
    Bottom Paint: Black

    Add an extra layer of protection with black bottom paint.

  • Bottom Paint: Navy Blue
    Bottom Paint: Navy Blue

    Add an extra layer of protection with navy bottom paint.

Canvas Options

  • Aft Cockpit Canvas - Cockpit IsinGlass Enclosure
    Aft Cockpit Canvas - Cockpit IsinGlass Enclosure

    Stay out of the elements in the aft cockpit while maintaining a great view thanks to the Cockpit Isinglass Enclosure option.

  • Aft Cockpit Canvas - Palm Beach Enclosure
    Aft Cockpit Canvas - Palm Beach Enclosure

    Stay out of the elements in the aft cockpit thanks to the Palm Beach Enclosure option.

  • Aft Cockpit Canvas - Transom Seat Cover
    Aft Cockpit Canvas - Transom Seat Cover

    Keep your upholstery fresh and clean with the transom seat covers.

  • Windshield Privacy Cover
    Windshield Privacy Cover

    Enjoy extra privacy in the salon thanks to the windshield privacy cover.

Canvas Color Options

  • Black - Canvas
    Black - Canvas
  • Linen Tweed - Canvas
    Linen Tweed - Canvas
  • Mediterranean Blue - Canvas
    Mediterranean Blue - Canvas
  • Newport Blue - Canvas
    Newport Blue - Canvas

Cockpit Options

  • Aft Cockpit Refrigerator
    Aft Cockpit Refrigerator

    Sometimes more is more. Add a refrigerator to the aft cockpit.

  • Aft Cockpit Table - Teak
    Aft Cockpit Table - Teak

    Enjoy a meal surrounded by fresh air at your handcrafted teak table.

  • Window Tint
    Window Tint

    Keep your salon cooler and help block the sun with windshield tint.

Cockpit Flooring Options

  • Cockpit Seagrass Mat
    Cockpit Seagrass Mat

    The optional Seagrass mat is durable, stain resistant and soft on the feet.

  • SeaDek Cockpit Sole
    SeaDek Cockpit Sole

    The SeaDek Cockpit Sole is an adhesive soft-step flooring option that feels great on the feet and is color-matched to your upholstery.

Cockpit Upholstery Options

  • Cockpit - Titanium
    Cockpit - Titanium

    A combination of charcoal, light grey, and white give a cool sporty look to your cockpit.

  • Hitch
    Hitch

    A combination of cool grey and light tan for an airy and elegant look.

  • River Rock
    River Rock

    A combination of dark brown and light tan for elegant depth.

Deck & Hull Options

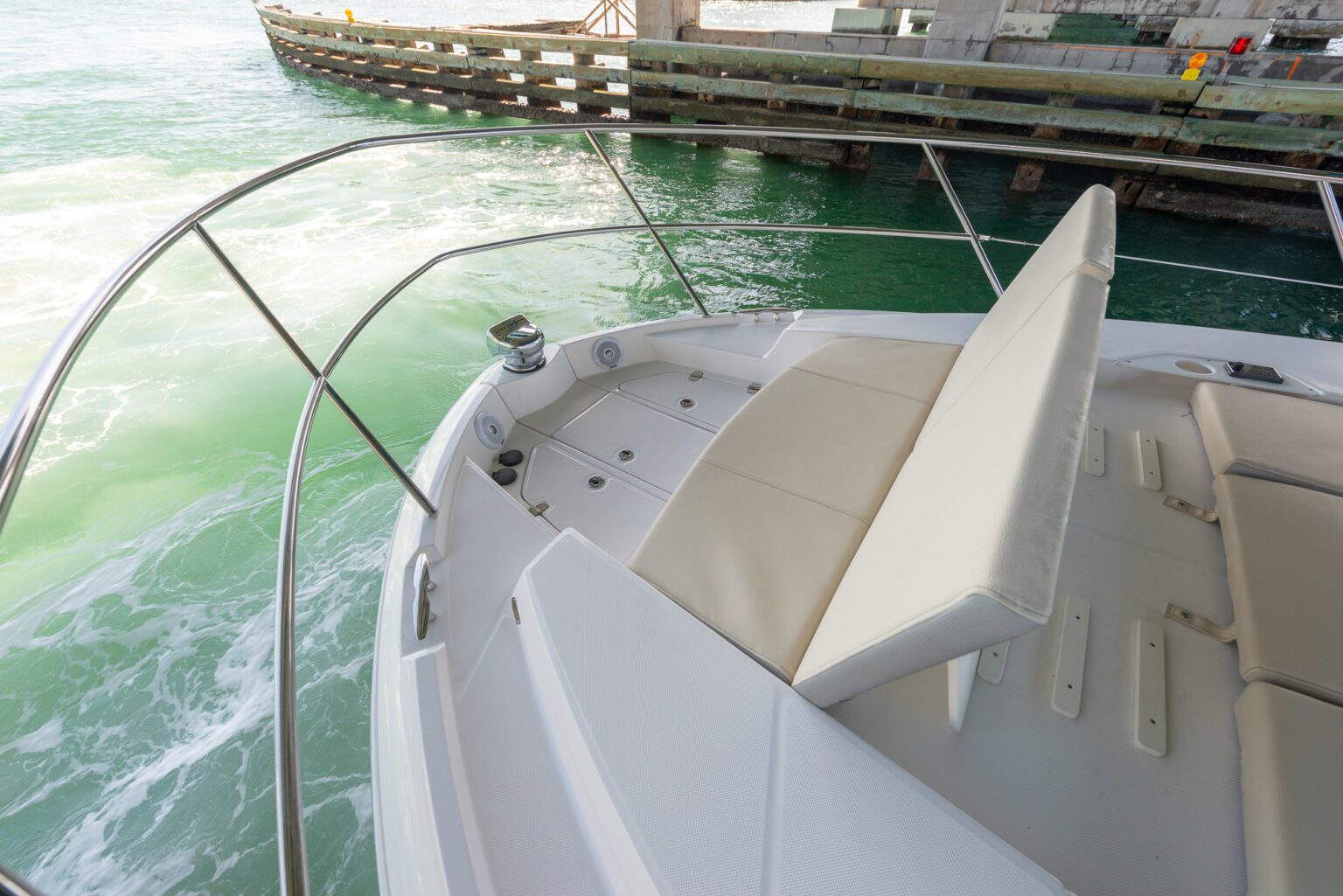

  • Anchor Windlass - All Chain
    Anchor Windlass - All Chain

    Set and retrieve your anchor with the utmost ease.

  • Anchor Windlass - Rope & Chain
    Anchor Windlass - Rope & Chain

    Set and retrieve your anchor with the utmost ease.

  • Fender Clips
    Fender Clips

    No more tying and untying knots. Attach boat fenders quickly and securely with these fender clips.

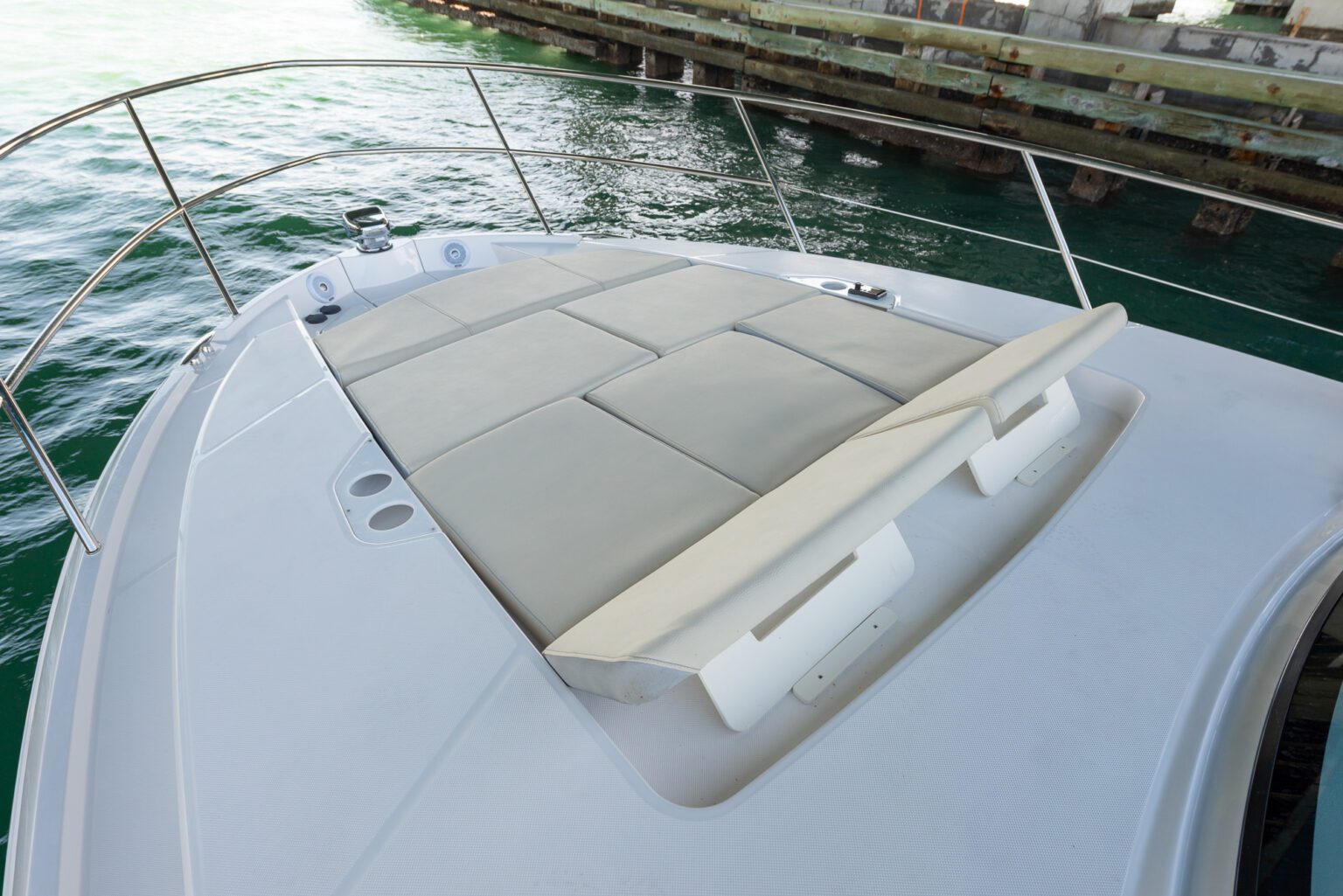

  • Foredeck Sunpad Cabana Sunshade

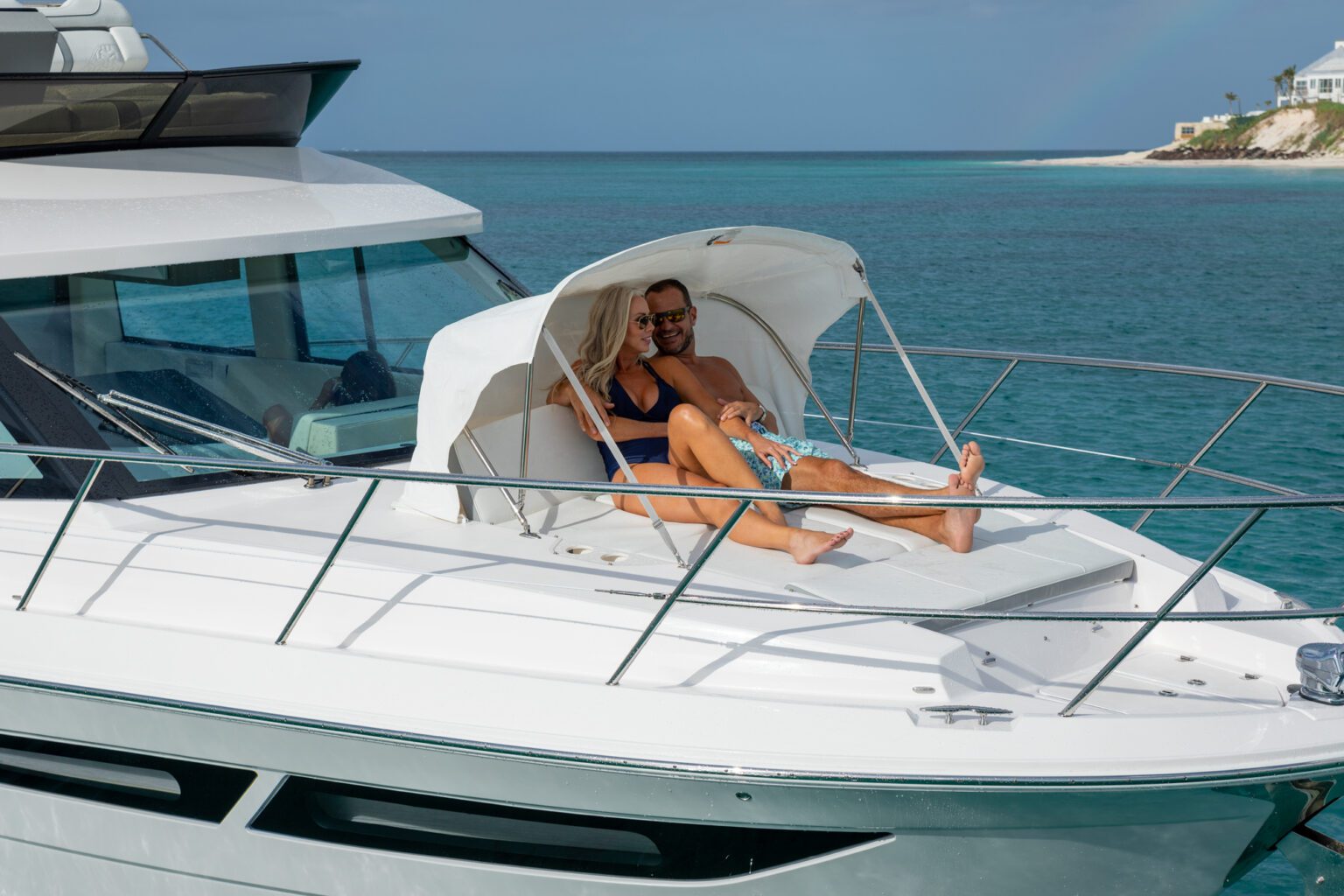

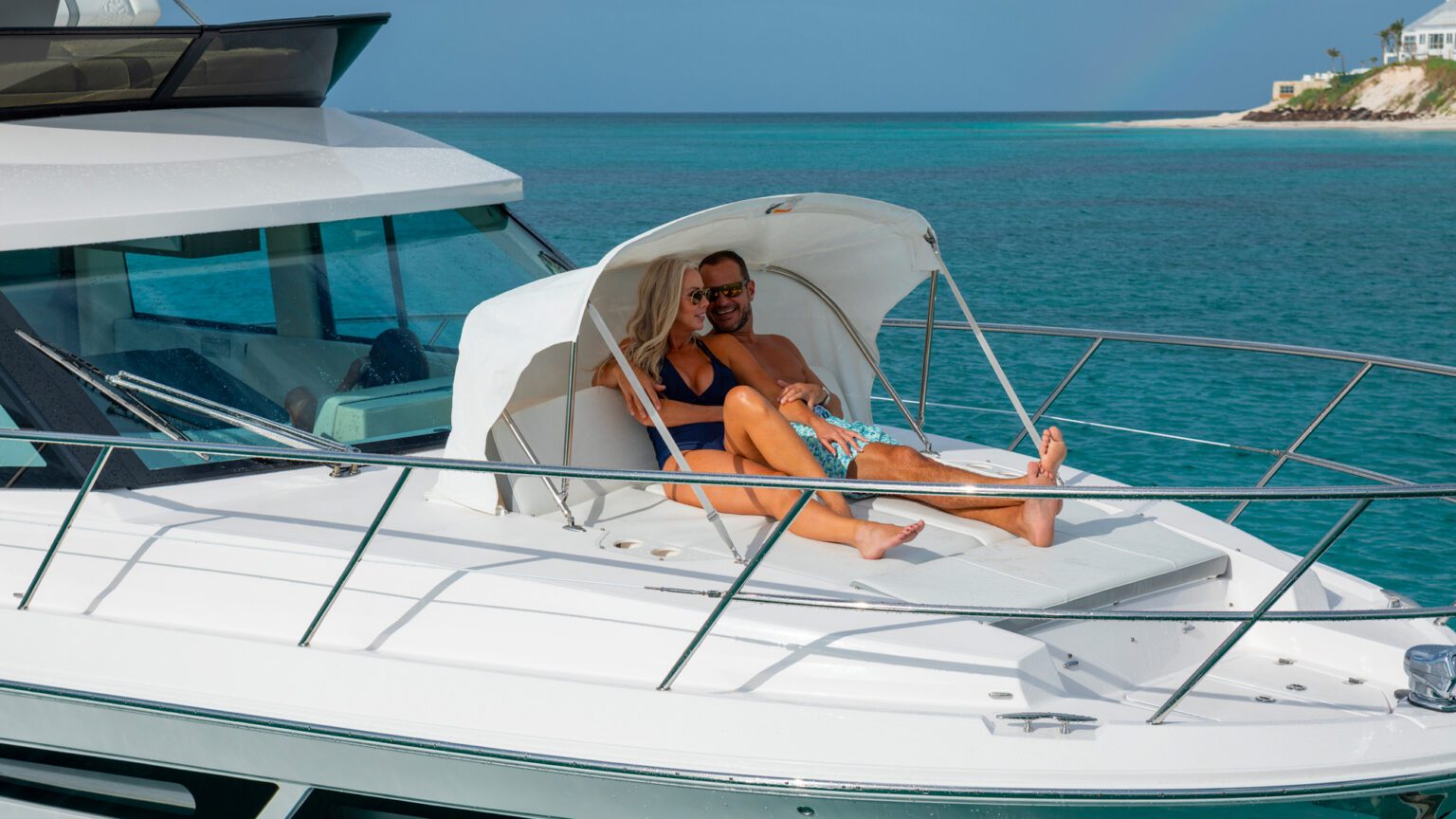

    Foredeck Sunpad Cabana Sunshade

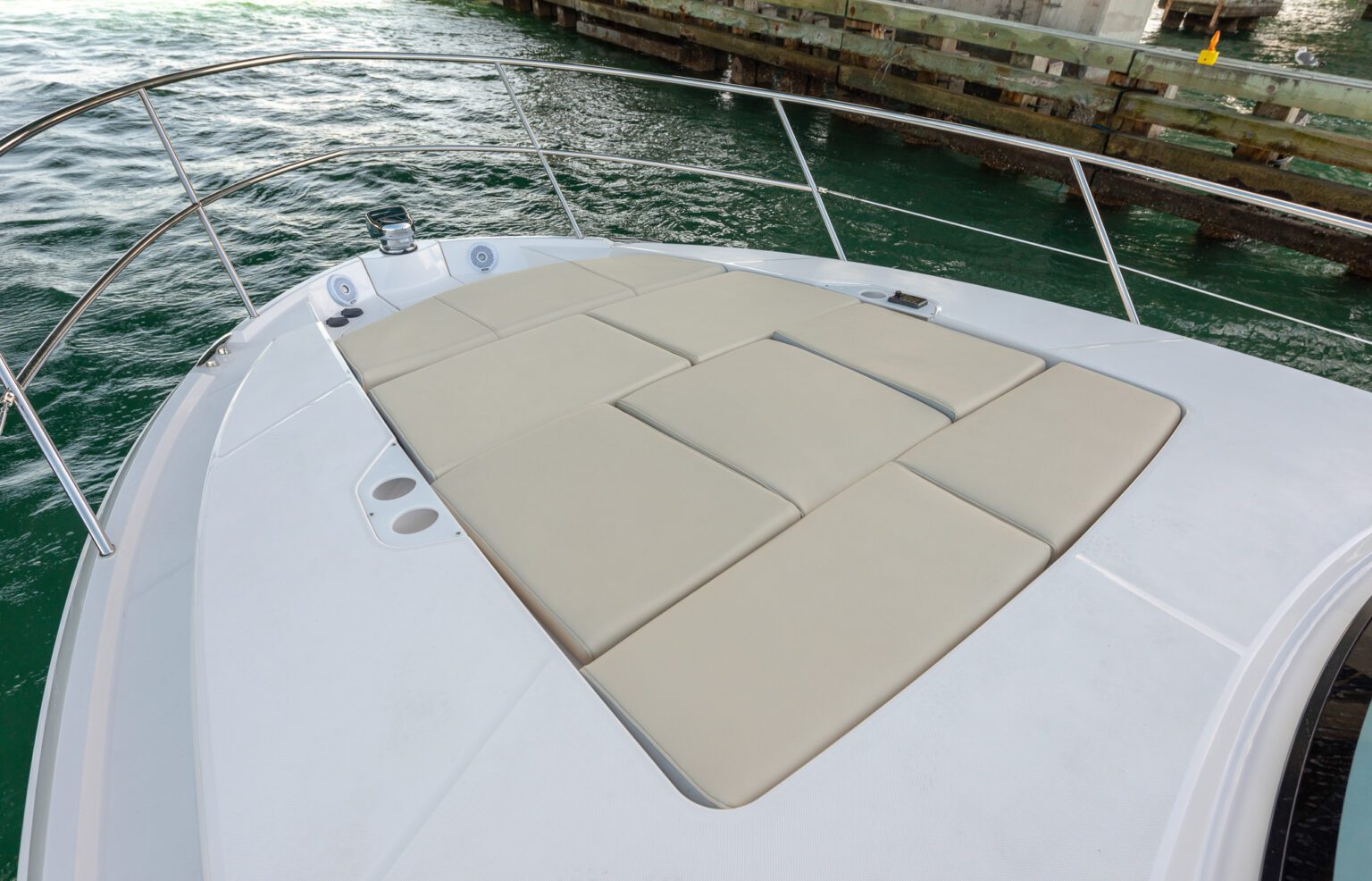

    Relax out of the sun on the foredeck sunpad with the Cabana Sunshade.

Transom Flooring Options

  • SeaDek Swim Platform
    SeaDek Swim Platform

    Enjoy the cool look and feel of SeaDek that's color-matched to your upholstery on your swim platform.

Entertainment & Navigation Options

Entertainment Options

  • Satellite TV - KVH
    Satellite TV - KVH

    Enjoy your satellite TV while cruising.

  • Stereo Satellite Tuner with Antenna
    Stereo Satellite Tuner with Antenna

    Listen to your favorite tunes on the XM radio!

  • Television - Cockpit
    Television - Cockpit

    Enjoy your favorite show out on the water on a breezy day.

Navigation Options

  • Garmin HD Closed Array Radar
    Garmin HD Closed Array Radar

    Sharpen your radar picture with high definition performance. The radar offers a whole new level of radar scanning capability.

  • Lower Helm - Dual GPS 8616 + B60 Transducer
    Lower Helm - Dual GPS 8616 + B60 Transducer

    Experience an advanced navigation solution with a dual touchscreen combo.

  • Lower Helm - Garmin 8622 + B60 Transducer
    Lower Helm - Garmin 8622 + B60 Transducer

    A single 22" screen navigation system with a B60 Transducer made perfectly to pair with your Regal.

  • Lower Helm - Garmin GPS 8622
    Lower Helm - Garmin GPS 8622

    A single 22" screen navigation system made perfectly to pair with your Regal.

  • Satellite Marine Weather
    Satellite Marine Weather

    Receive weather information directly to your boat.

  • Upper Helm - Dual Garmin 8616
    Upper Helm - Dual Garmin 8616

    Enjoy dual screens at your flybridge helm for the utmost control.

  • Upper Helm - GPS 8622
    Upper Helm - GPS 8622

    An advanced, reliable, and user-friendly Garmin interface.

  • Wireless Remote for Windlass
    Wireless Remote for Windlass

    A wireless remote kept at the helm to control your anchor windlass.

Features

Engine & Technical Features

Technical & Systems Features

  • Automatic Fire Suppression System
    Automatic Fire Suppression System

    An automatic fire extinguisher is sure to give any boater peace of mind.

  • Bow Thruster
    Bow Thruster

    This transversal propulsion device tremendously increases maneuverability; docking becomes a breeze.

  • Convenient Remote Main Battery Switches
    Convenient Remote Main Battery Switches

    Control your battery switches from the cockpit and forego climbing down into the bilge.

  • Dockside Fresh Water Hookup with Onboard Tank Fill Valve
    Dockside Fresh Water Hookup with Onboard Tank Fill Valve

    Keep your water tank full. You never know what the day has in store.

  • Dockside Power - 50 amp
    Dockside Power - 50 amp

    With a single 50' 50 amp dockside cable, your Regal will be powered up and all system ready to go.

  • Electric Shore Cord Reel
    Electric Shore Cord Reel

    Roll up your shore power cord with the touch of a button.

  • Generator
    Generator

    Have power to run the systems on the boat when not plugged into shore power.

  • Integrated Self Bailing Cockpit System
    Integrated Self Bailing Cockpit System

    Keep a clean bilge with all your wash down and rain water draining directly overboard.

  • LED Indicating Trim Tab Controls
    LED Indicating Trim Tab Controls

    The trim tabs give you complete control over your boat even in rough seas.

  • NMMA, ABYC, USCG & CE Certified
    NMMA, ABYC, USCG & CE Certified

    Regal makes sure that it meets the highest standards of safety in the industry.

  • SeaStar SeaStation & SeaWays
    SeaStar SeaStation & SeaWays

    Get the most out of your 38 XO with the best tech including a virtual anchor and autopilot. (Requires Optimus 360)

  • Two 16,000 BTU and One 27,000 BTU AC Units
    Two 16,000 BTU and One 27,000 BTU AC Units

    The air conditioning system will keep the cabin cool even on the hottest days or use the reverse cycle heat on the colds ones.

  • Weather Resistant Deutsch Connectors
    Weather Resistant Deutsch Connectors

    On a Regal you'll find Deutsch connectors for superior protection and durability.

Interior Features

Aft Stateroom Features

  • Carbon Monoxide Detector
    Carbon Monoxide Detector

    Safety is standard on a Regal. Case in point: the cabin carbon monoxide detector.

  • Convertible King Size Bed
    Convertible King Size Bed

    Twin berths easily convert into a king-size bed.

  • Twin Berths
    Twin Berths

    Twin berths easily convert into a king bed.

  • Upholstered Headboard
    Upholstered Headboard

    The aft stateroom features an upholstered headboard with storage compartment

Forward Stateroom Features

  • 32" TV
    32" TV

    Your home for entertainment. The 32" TV is for your nighttime paradise.

  • Hidden Pocket Door System for Stateroom Privacy
    Hidden Pocket Door System for Stateroom Privacy

    Uniquely designed sliding privacy doors separate the master stateroom from the rest of the boat.

  • Opening Deck Hatch with Privacy Screen
    Opening Deck Hatch with Privacy Screen

    Let the breeze in but keep the bugs out with the deck hatch and screen.

  • Standard Height Olympic Queen Bed with Innerspring Mattress
    Standard Height Olympic Queen Bed with Innerspring Mattress

    The forward stateroom features a full sized queen that was built at the perfect height for easily getting in and out of bed

  • Under Bed Storage
    Under Bed Storage

    Looking for even more storage? Simply lift the forward bed to reveal a large storage compartment.

Head Features

  • Solid Surface Counter Top
    Solid Surface Counter Top

    This head features a high quality solid surface counter top for great looks and durability

  • Teak Floor and Seat in Separate Shower
    Teak Floor and Seat in Separate Shower

    The rich look and feel of teak give the shower a warm feel.

  • Vessel Sink
    Vessel Sink

    A glass vessel sink is just another example of how Regals feature the latest trends with a classy touch.

Salon Features

  • Stainless Steel Stairway Railing
    Stainless Steel Stairway Railing

    The stainless stairway provides for easy access into the staterooms.

Exterior Features

Bridge Features

  • Flybridge Refrigerator
    Flybridge Refrigerator

    There's no need to leave the flybridge when you are thirsty or need a snack thanks to the flybridge refrigerator.

  • Garmin Dash Panel System
    Garmin Dash Panel System

    The Garmin Display system is an advanced, reliable, and user-friendly interface featuring a standard 22" screen or optional Dual 16" screens.

  • Joystick Control with Steering and Cruise Control
    Joystick Control with Steering and Cruise Control

    The joystick control allows anyone to look like a master captain when docking.

  • L-Shaped Seating
    L-Shaped Seating

    L-Shaped Seating Starboard and Aft with Removable Seat and Backrest Cushions

  • Large Tinted Acrylic Access Hatch to Bridge
    Large Tinted Acrylic Access Hatch to Bridge

    Provides simple access to the flybridge.

  • Stainless Steel Bridge Side Rails
    Stainless Steel Bridge Side Rails

    Stainless Steel Bridge Side Rails to Aid in Foredeck Access.

  • Stainless Steel Stair and Hand Rail Structure with Teak Steps
    Stainless Steel Stair and Hand Rail Structure with Teak Steps

    Access the bridge with ease with these beautiful teak steps and convenient stainless handrails.

  • UltraLounge
    UltraLounge

    The multi-position backrest allows you to sit forward, aft, lounge aft, or even layout for a perfect tan. Let the Ultralounge seating accommodate any way you want to sit, lay or hang out!

Cockpit Features

  • Aft Cockpit Grill Station
    Aft Cockpit Grill Station

    Integrated electric smokeless grill, solid surface cover, and under the counter refrigerator.

  • Amtico Water Resistant Flooring
    Amtico Water Resistant Flooring

    Beautifully designed water resistant flooring

  • Courtesy Blue LED Lights
    Courtesy Blue LED Lights

    With the standard blue LED cockpit lights, your boat is sure to make a statement at the dock.

  • Expansive Glass Enclosure Doors
    Expansive Glass Enclosure Doors

    The glass enclosure doors slide completely open to join the aft patio and upper salon.

  • Fusion ANT Wireless Stereo Remote
    Fusion ANT Wireless Stereo Remote

    Enjoy the freedom to control your audio entertainment from anywhere on your boat. Whether you’re fishing at the transom or about to jump from the swim platform into the water, audio control is within reach any time, anywhere with the ARX remote – it’s never been so easy.

  • Hidden TV
    Hidden TV

    The hidden TV folds down with the push of a button.

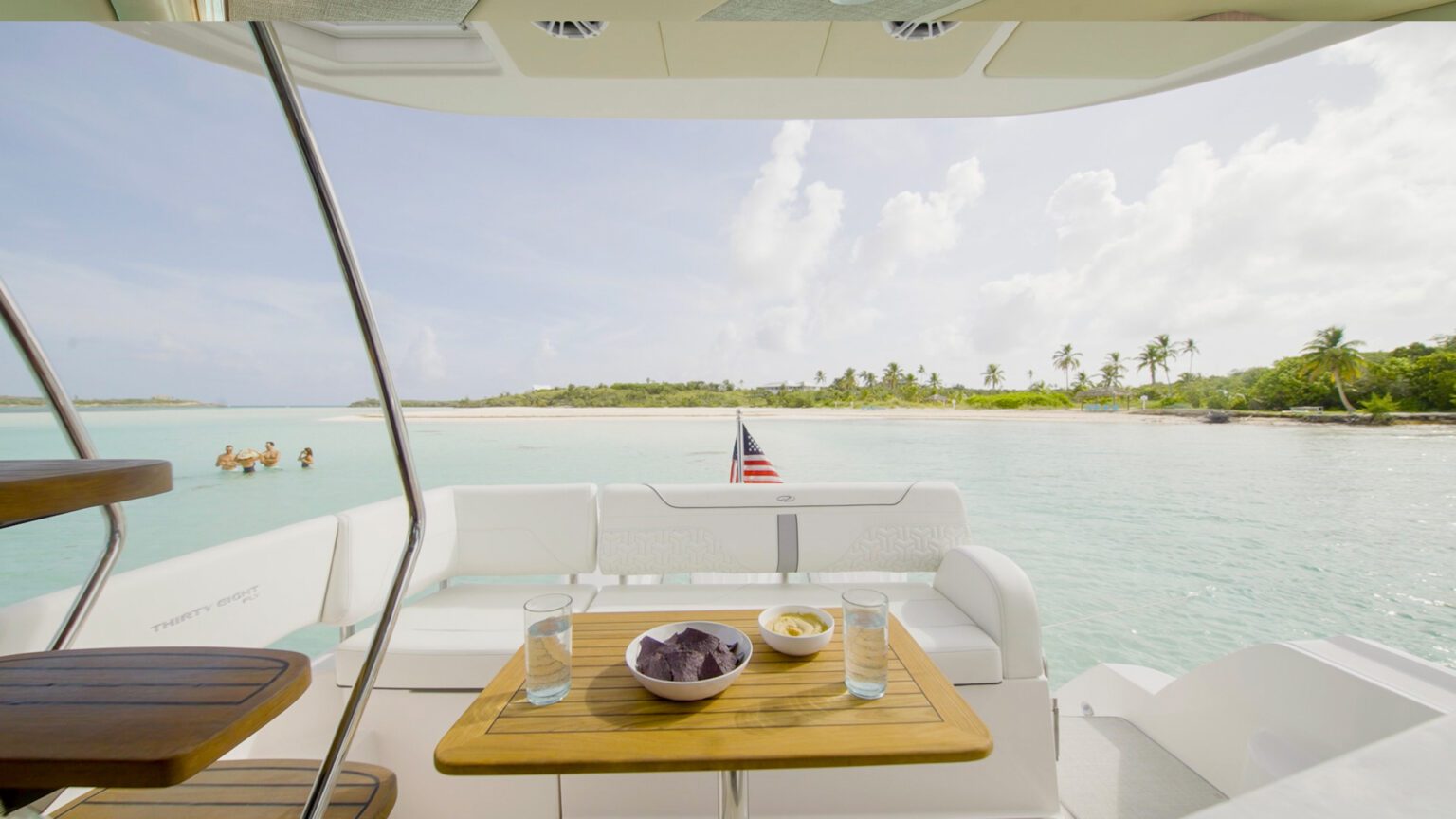

  • L-Shaped Seating
    L-Shaped Seating

    L-shaped seating aft and starboard with removable section for foredeck or docking access.

  • MarineTred Non-Skid
    MarineTred Non-Skid

    Diamond MarineTred is incorporated into the mold for a superior finish. It's less abrasive and easier to clean.

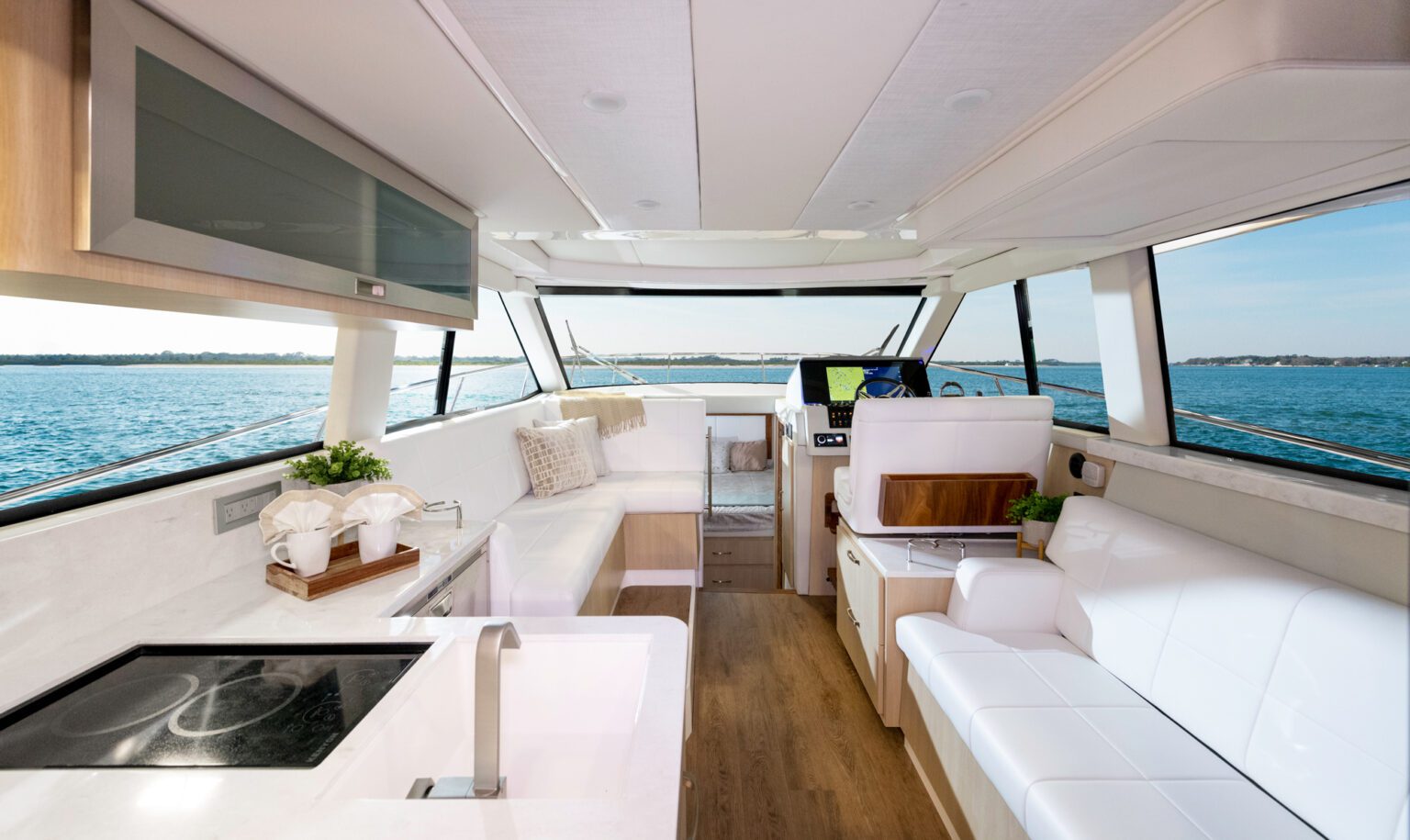

  • Salon Galley
    Salon Galley

    Refrigerator, freezer, sink, smokeless grill, and a microwave are just some of the amenities that can be found in the galley and salon.

  • Seagrass Floor Covering
    Seagrass Floor Covering

    The Seagrass floor covering is durable. stain resistant, and soft on the feet.

  • Stereo Performance Package
    Stereo Performance Package

    Enjoy the upgraded Fusion stereo package for the ultimate sound system.

Helm Features

  • Double Wide Helm Seat with Lift Up Bolster
    Double Wide Helm Seat with Lift Up Bolster

    The captain's chair not only has plenty of space for two, but also slides back and forth for ultimate comfort.

  • Garmin VHF 100
    Garmin VHF 100

    The premium Garmin VHF 100 is perfect for communicating with other boaters and local marinas.

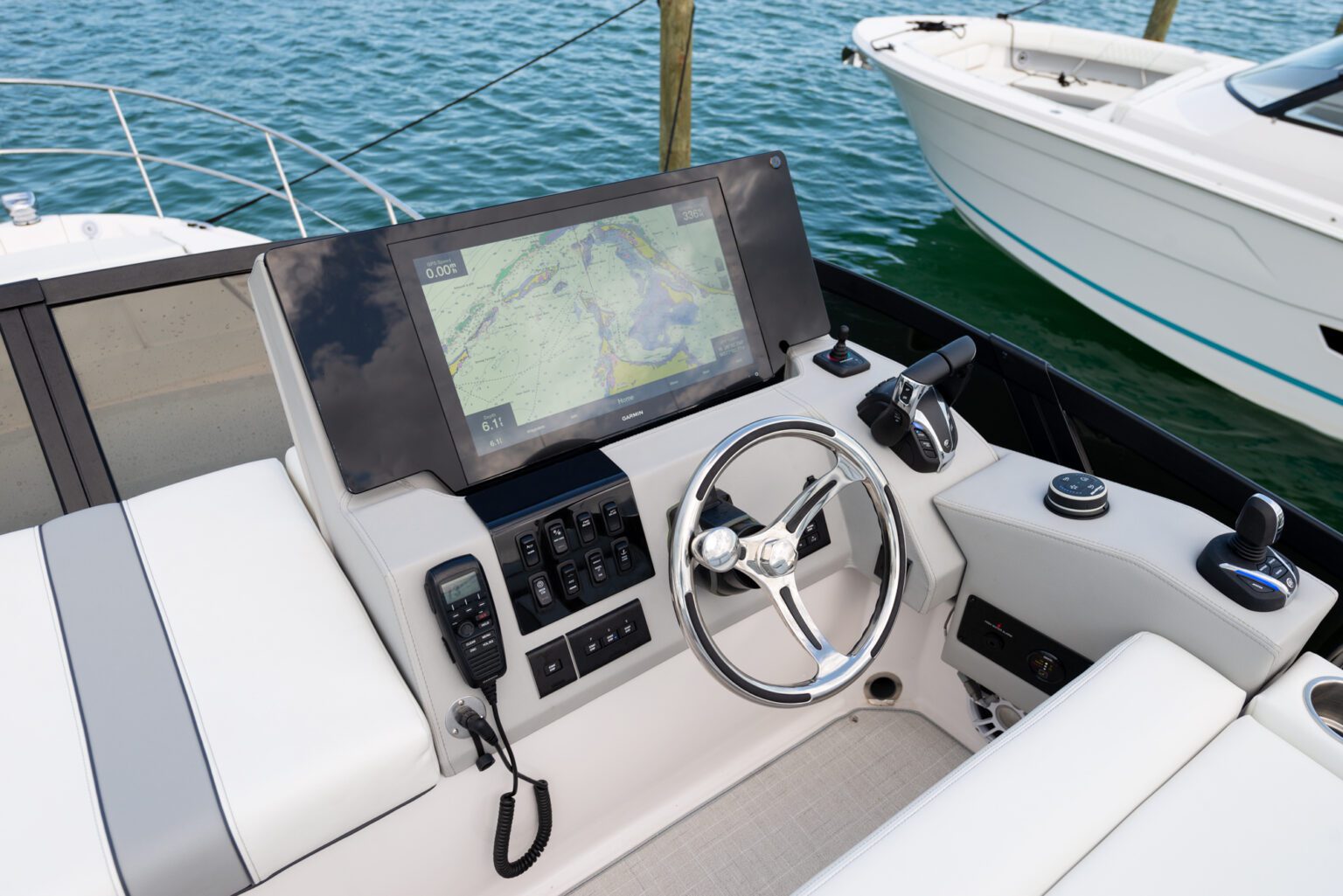

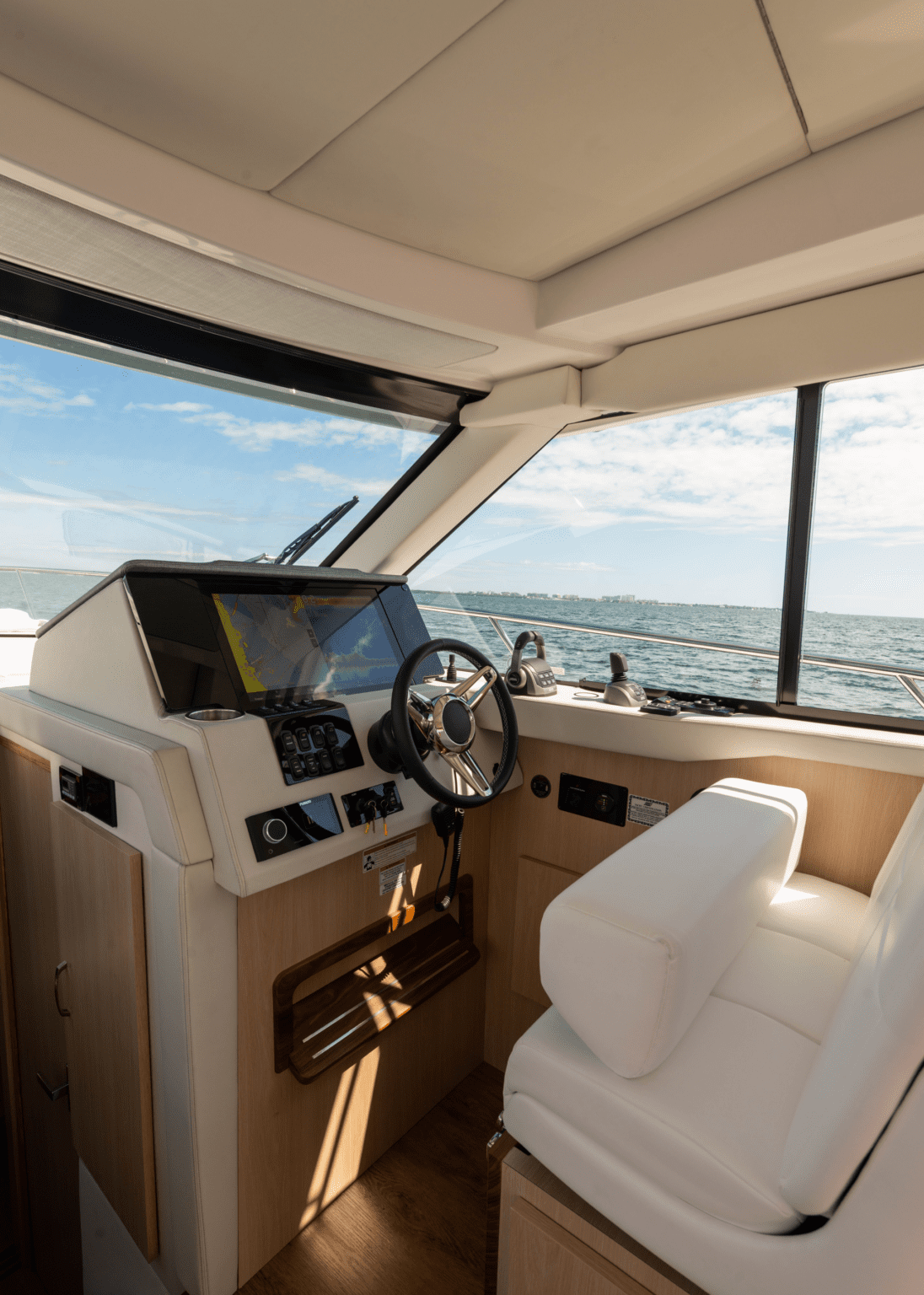

  • Glass Cockpit Dash System
    Glass Cockpit Dash System

    The glass cockpit is an advanced, reliable and user-friendly Garmin interface where all of your instruments and controls are located in one intuitive location.

  • Premium Hand Wrapped Dash
    Premium Hand Wrapped Dash

    The vinyl wrapped dash is the perfect compliment to your hand wrapped steering wheel

  • Yamaha Binnacle Control
    Yamaha Binnacle Control

    When you're ready to take command, the twin binnacle controls place all the horsepower at your fingertips.

Hull & Deck Features

  • Access Steps Port and Starboard
    Access Steps Port and Starboard

    Thoughtfully placed access steps make boarding easy and worry free.

  • Anchor Windlass
    Anchor Windlass

    The anchor windlass makes anchoring and mooring a breeze.

  • Blue LED Underwater Lighting
    Blue LED Underwater Lighting

    For those looking to make a statement, the underwater lights will turn heads.

  • Bow Chaise Loungers and Sunpad
    Bow Chaise Loungers and Sunpad

    The versatile foredeck chaise lounge has multiple reclining positions including a flat lay down making this the place to be.

  • Foredeck Wash Down
    Foredeck Wash Down

    You'll appreciate the standard foredeck wash down when it's time to give your yacht a good scrub.

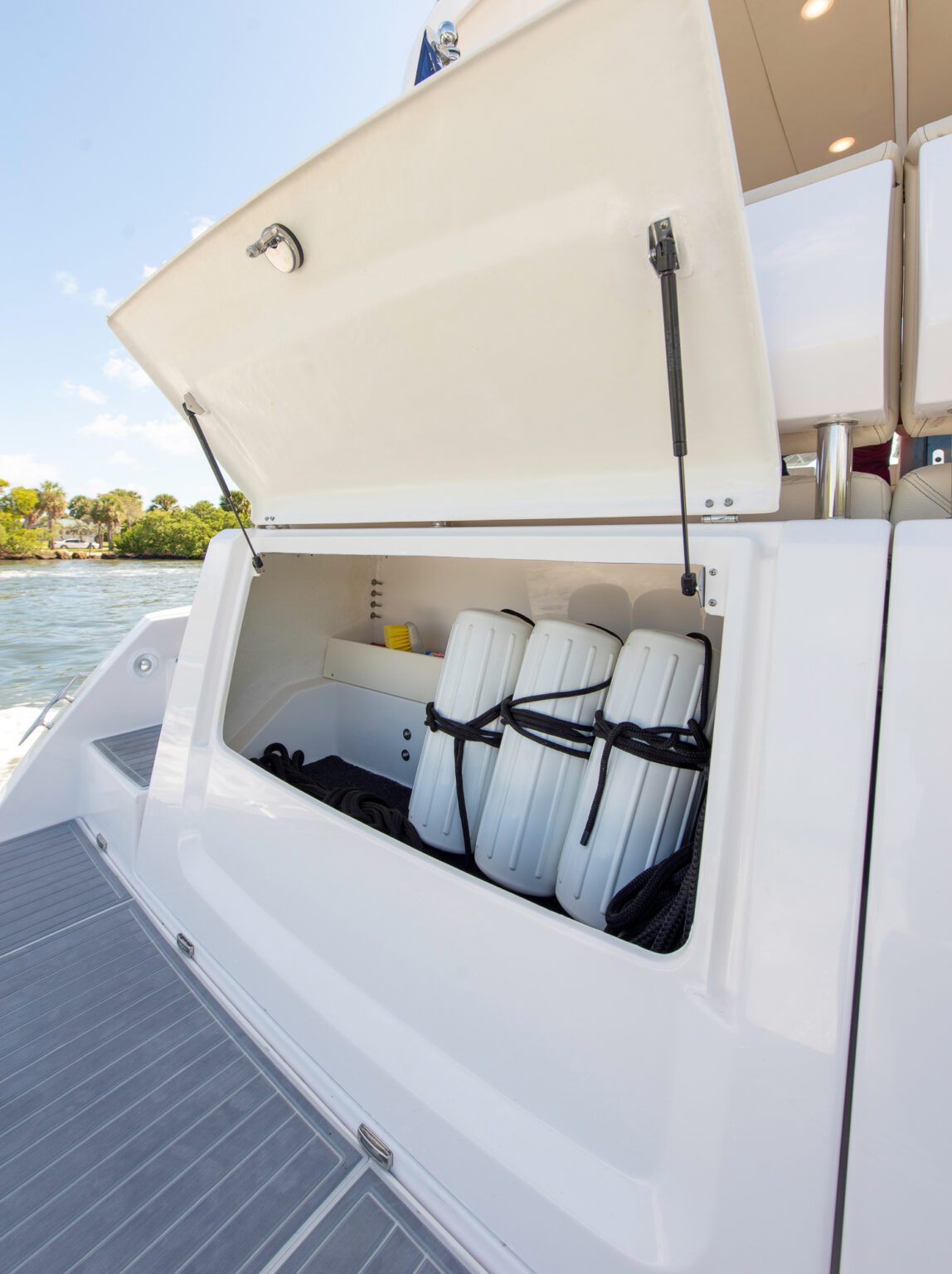

  • Large Transom Storage Locker
    Large Transom Storage Locker

    Neatly store away fenders, lines, dock brushes, life jackets and any other boating accessory you may want to bring along.

  • Lighter & Stronger Infusion Hull Construction
    Lighter & Stronger Infusion Hull Construction

    Thanks to the advancements in boat building technology we are able to craft our boats lighter and stronger every single time.

  • Locking Transom Walk Through Door
    Locking Transom Walk Through Door

    This locking, pivoting transom walk through door is easily transitioned from open to shut.

  • Stainless 10" Deck Cleats
    Stainless 10" Deck Cleats

    The 38 Grande Coupe features eight 10" stainless steel cleats which won't rust or break over time.

  • Stainless Deck Hardware
    Stainless Deck Hardware

    Regals feature upgraded 316 grade stainless hardware.

  • Stainless Steel Bow Rail
    Stainless Steel Bow Rail

    The bow rail adds style and function to the foredeck of your 38.

  • Stainless Steel Grab Rails for Foredeck Access
    Stainless Steel Grab Rails for Foredeck Access

    These stainless grab rails make moving forward and aft a breeze.

  • Unique Transom Design
    Unique Transom Design

    A slim, low-to-the-water platform features wings on both sides that wrap around the outboards. A step provides easy access across to either side, even with the outboards trimmed up.

Windshield & Canvas Features

  • Foredeck Sun Lounge Cover
    Foredeck Sun Lounge Cover

    Be sure to keep your foredeck sunlounge clean.

  • Port and Starboard Windshield Wipers with Washers
    Port and Starboard Windshield Wipers with Washers

    The windshield wipers will keep you cruising in all weather.

Downloads

Performance Reports

  • 38 FXO Performance Report - Triple Yamaha 300s
    PDF

Resources

  • 2023 Coastal Interior Package
    PDF
